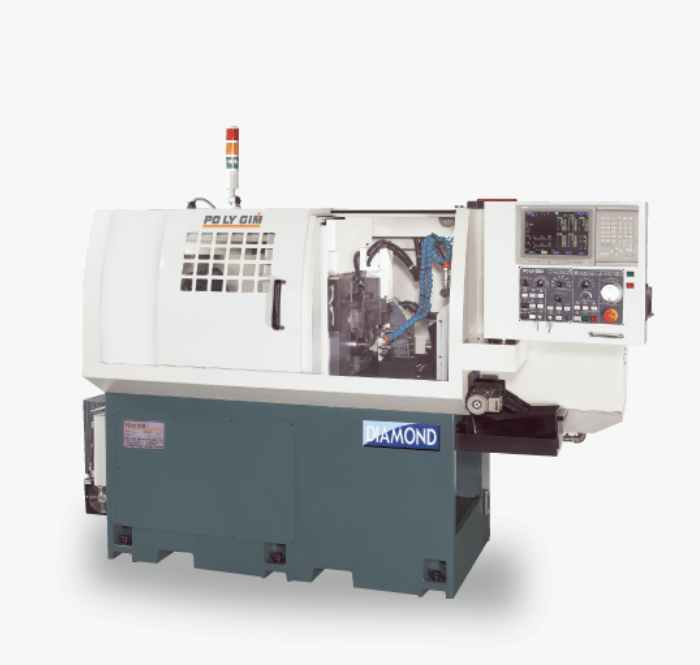

Diamond 20 Series

20/20B/20CS/20CSB

下載PDF檔案加入詢價車
    Higher productivity with lower cost: Tool post structure, wider range of selectivity, and optional features provide high speed and high precision operation. This saves unnecessary expenditures.

    Back spindle: 20 CSB offers high performances of front and back simultaneous machining. The simple 20 B also provides an economic solution. Not only does it maintain its functionality, but also it comes with lower cost advantage.

    Orientation Function: The 5° orientation function is standard accessory and the CF axis is optional accessory for the main spindle.

    Short length of remnant material: The Rough material bushing is optional. By using this rough material bushing, the remnant length can reach to 50mm (depending on the length of the last machined). It is used to reduce material waste,
    saving the consumption of materials.

    Raw material machining: The 0.1mm tolerance of material can also be processed on our Swiss type machine by using "Rough material bushing".
特點介紹


Wider range of selectivity to meet your needs

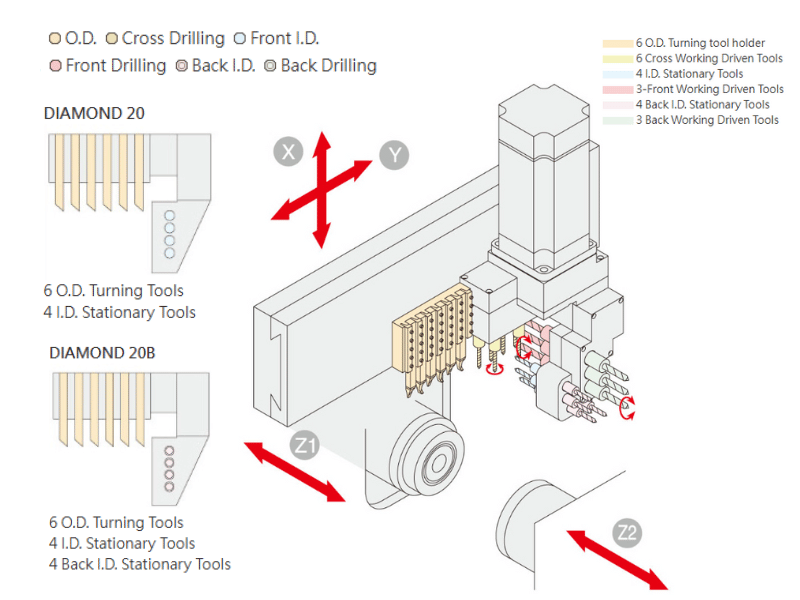

Tool Post: DIAMOND 20/20B

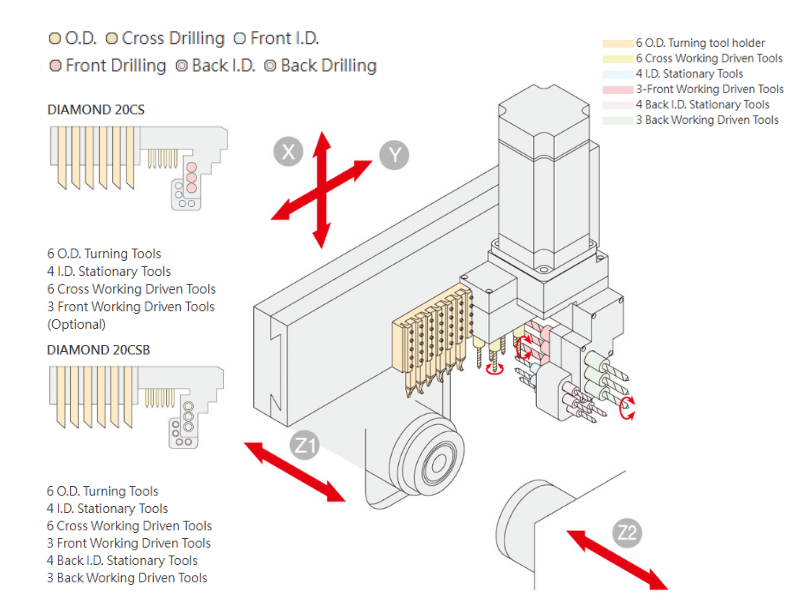

Tool Post: DIAMOND 20CS/20CSB

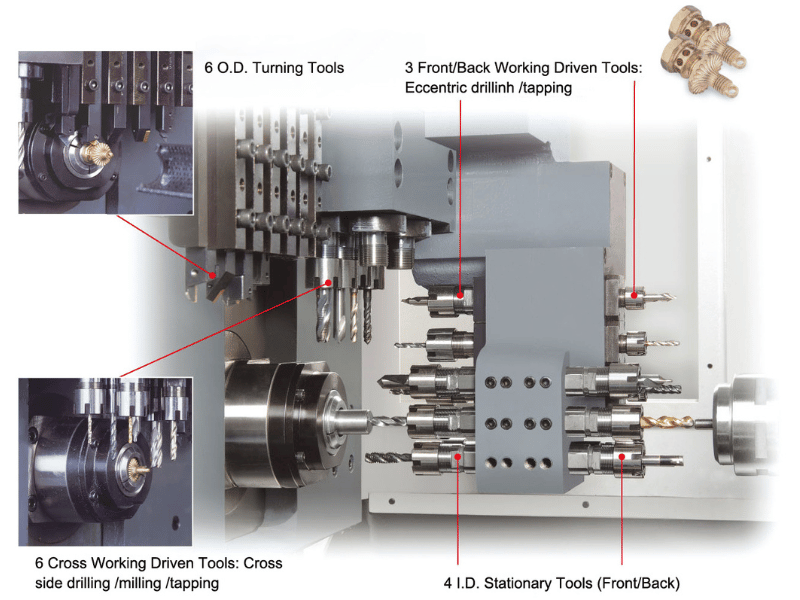

Examples


標準配件
    Spindle 5° Indexing
    Part off Detective Sensor
    Coolant System
    Work Light
    Part Catcher
    Fixed Bushing
    Live Bushing(Except DIAMOND 20/20B)
    Cross Working Driven Tool (Except DIAMOND 20/20B)
    Back Spindle (Except DIAMOND 20/20CS)
    Front Working Driven Tool (Except DIAMOND 20/20B/20CS)
    Back Working Driven Tool (Except DIAMOND 20/20B/20CS)
選擇配件
    Live Bushing (Only for DIAMOND 20/20B)
    Front Working Driven Tool (Only for DIAMOND 20CS)
    CF Axis (Only for DIAMOND 20CS/20CSB)
    Rough Material Bushing (Max.machining = Bar diameter x 3)
    Chip Conveyer / Chip Bucket
產品規格
ItemsDiamond 20Diamond 20BDiamond 20CSDiamond 20CSB
Working Range
Max. Machining Dia.Ø20 mmØ20 mmØ20 mmØ20 mm
Max. Machining Length per Chucking250 mm250mm250mm250 mm
Max. Drilling Dia.14 mm14 mm14 mm14 mm
Max. Tapping DiaM10M10M10M10
O.D. Tooling
Number of Tools6666
Dimension□12 ×12 ×100□12 ×12 ×100□12 ×12 ×100□12 ×12 ×100
I.D. Tooling
Number of Tools4444
Dimension10mm (ER16)10mm (ER16)10mm (ER16)10mm (ER16)
Cross Working Driven Tooling
Number of Tools--66
Dimension--10 mm (ER16)10 mm (ER16)
Cross Spindle Speed--200-6000 r.p.m.200-6000 r.p.m.
Front Working Driven Tooling
Number of Tools--33
Dimension--10 mm (ER16)10 mm (ER16)
Spindle Speed--6000 r.p.m.6000 r.p.m.
Back I.D. Tooling
Number of Tools-4-4
Dimension-10 mm (ER16)-10 mm (ER16)
Back Working Driven Tooling
Number of Tools---3
Dimension---7 mm (ER11)
Spindle Speed---6000 r.p.m.
Spindle
Spindle Hole Dia.Ø21 mmØ21 mmØ21 mmØ21 mm
Spindle Speed200-10000 r.p.m.200-10000 r.p.m.200-10000 r.p.m.200-10000 r.p.m.
Back Spindle
Back Spindle Hole Dia.-Ø21 mm-Ø21 mm
Back Spindle Speed-7500 r.p.m.-7500 r.p.m.
Max. length for front ejection-80 mm-80 mm
Rapid Speed
Rapid Speed18 M18 M18 M18 M
Motors
Spindle Motor3.7 kW3.7 kW3.7 kW3.7 kW
Back Spindle Motor-4 kW-4 kW
X1, Y1 ,Z1  Axes Motor1 kW1 kW1 kW1 kW
Z2 Axis Motor-1 kW-1 kW
Coolant Pump0.18 kW0.18 kW0.18 kW0.18 kW
Lubrication4 W4 W4 W4 W
Cross Spindle--2.2 kW2.2 kW
Machine Dimensions
Center Height960 mm960 mm960 mm960 mm
Weight2150 kg2650 kg2168 kg2668 kg
Machine Dimension1588 × 988 × 1568 mm1788 × 988 × 1568 mm1588 × 988 × 1568 mm1788 × 988 × 1568 mm
Air Pressure
Air Pressure5kg/cm5kg/cm5kg/cm5 kg/cm
Air Supply10 L/min10 L/min10 L/min10 L/min
* 我們保留更改設計的權利，恕不另行通知。
