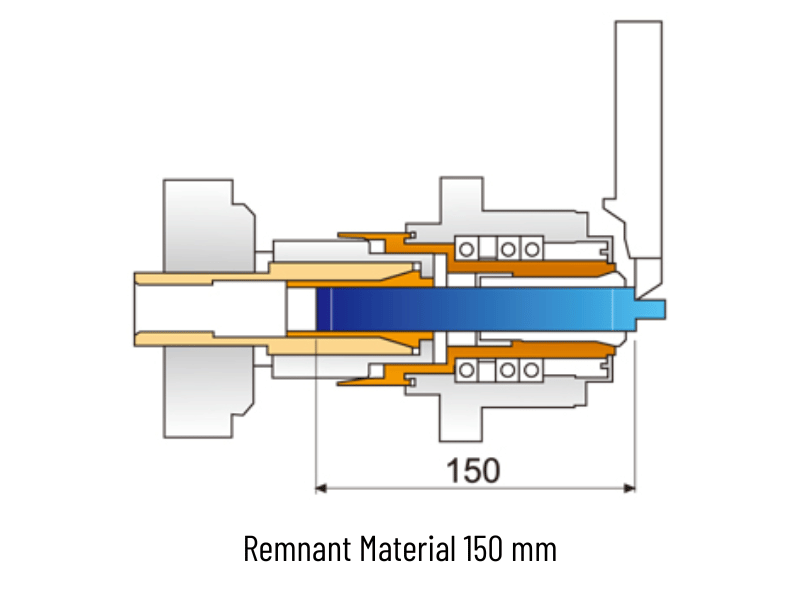

Using Live Bushing with Guide Bush

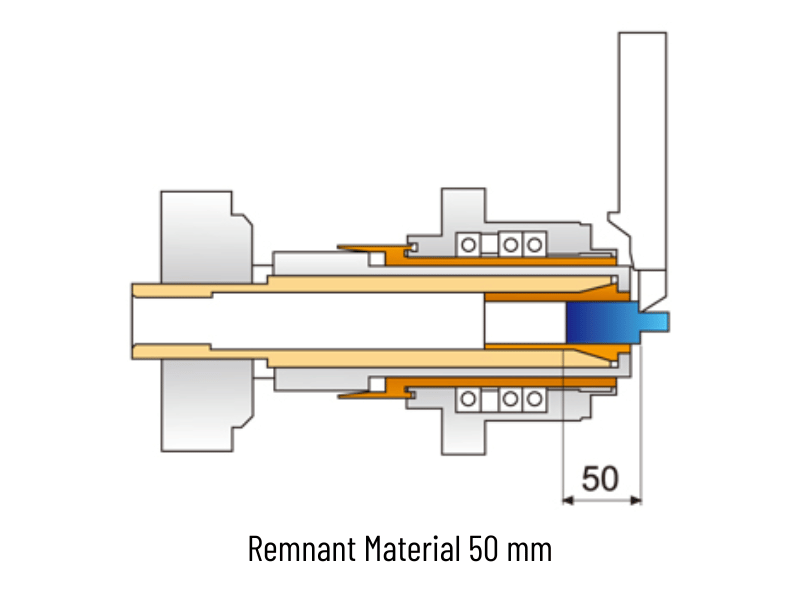

Using Rough Material Bushing without Guide Bush

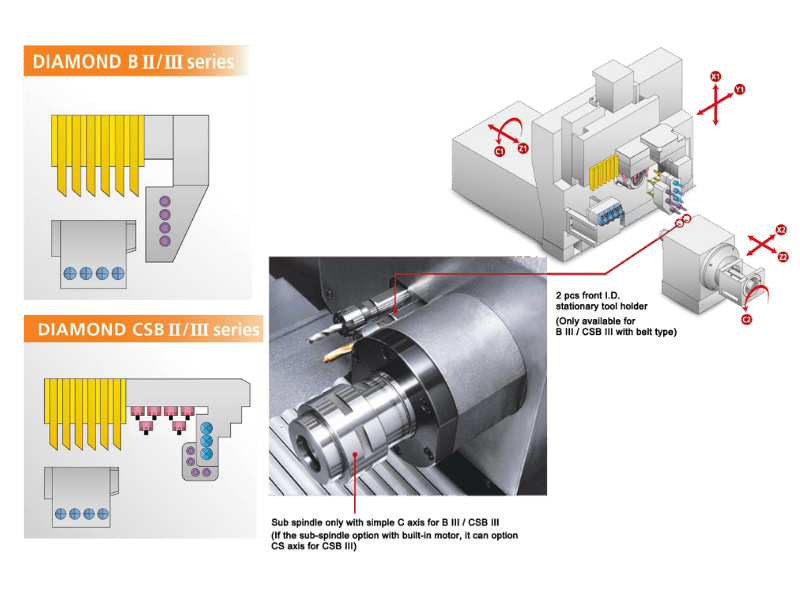

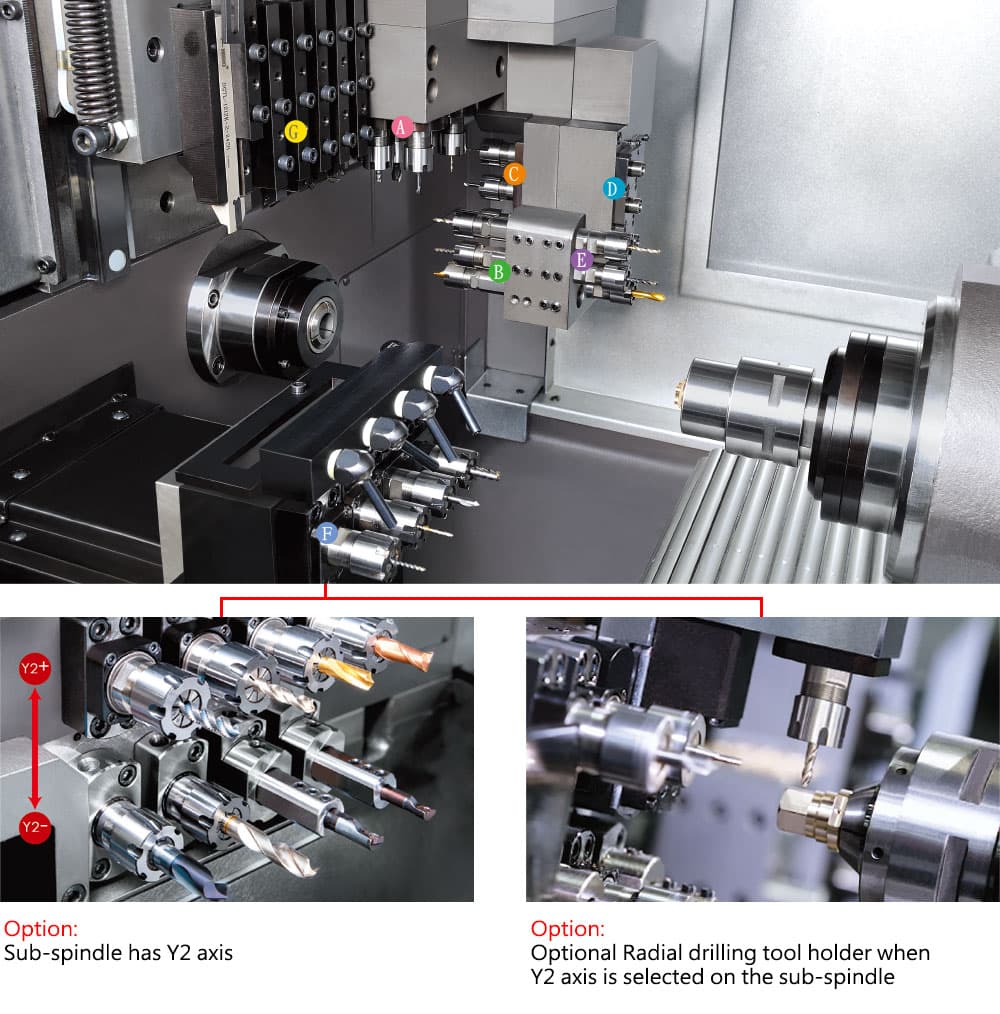

A: 6 pcs cross working driven tool holder
B: 4 pcs I.D. stationary tool holder
C: 3 pcs front working driven tool holder
D: 3 pcs back working driven tool holder
E: 4 pcs back I.D. stationary tool holder
F: 4 pcs back I.D. stationary / working driven tool holder
G: 6 pcs O.D. turning tool holder

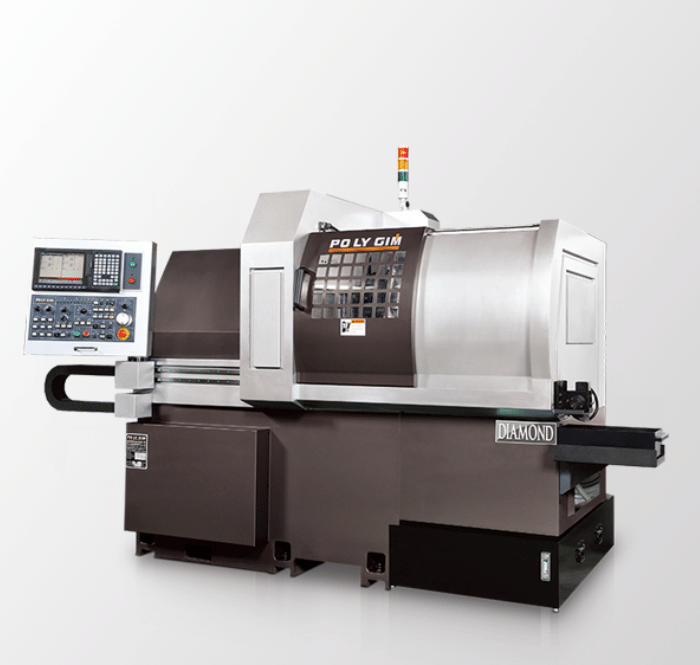

| Items | DIAMOND 12B Ⅲ | DIAMOND 12CSB Ⅲ | DIAMOND 16B Ⅲ | DIAMOND 16CSB Ⅲ | DIAMOND 20B Ⅲ | DIAMOND 20CSB Ⅲ | DIAMOND 25B Ⅲ | DIAMOND 25CSB Ⅲ |
|---|---|---|---|---|---|---|---|---|
| Working Range | ||||||||
| Max. Machining Dia. | Ø12.7 mm | Ø12.7 mm | Ø16.5 mm | Ø16.5 mm | Ø20 mm | Ø20 mm | Ø26 mm | Ø26 mm |
| Max. Machining Length Per Chucking | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Max. Drilling Dia. (Main Spindle) | Ø7 mm | Ø7 mm | Ø10 mm | Ø10 mm | Ø10 mm | Ø10 mm | Ø10 mm | Ø10 mm |
| Max. Drilling Dia. (Sub Spindle) | Ø7mm | Ø7mm | Ø7mm | Ø7mm | Ø7mm | Ø7mm | Ø7mm | Ø7mm |
| Max. Tapping Dia. (Main Spindle) | M6 | M6 | M8 | M8 | M8 | M8 | M8 | M8 |
| Max.Tapping Dia. (Sub Spindle) | M6 | M6 | M6 | M6 | M6 | M6 | M6 | M6 |
| O.D. Tooling | ||||||||
| Number of Tools | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Dimension | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 | □12 × 12 × 120 |
| I.D. Tooling | ||||||||
| Number of Tools | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Dimension | 10mm (ER16) | 10mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) |
| Cross Working Driven Tooling | ||||||||
| Number of Tools | - | 6 | - | 6 | - | 6 | - | 6 |
| Dimension | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) |
| Cross Spindle Speed | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. |
| Front Working Driven Tooling | ||||||||
| Number of Tools | - | 3 | - | 3 | - | 3 | - | 3 |
| Dimension | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) |
| Spindle Speed | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. |
| Back I.D. Tooling | ||||||||
| Number of Tools | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 |
| Dimension | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) | 10 mm (ER16) |
| Back Working Driven Tooling | ||||||||
| Number of Tools | - | 3 | - | 3 | - | 3 | - | 3 |
| Dimension | - | 7 mm (ER11) | - | 7 mm (ER11) | - | 7 mm (ER11) | - | 7 mm (ER11) |
| Number of Tools | - | 4 | - | 4 | - | 4 | - | 4 |
| Dimension | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) | - | 10 mm (ER16) |
| Spindle Speed | - | 200~6000 r.p.m. | - | 200~6000 r.p.m. | - | 200~6000 r.p.m. | - | 200~6000 r.p.m. |
| Spindle | ||||||||
| Spindle Hole Dia. | Ø13 mm | Ø13 mm | Ø17 mm | Ø17 mm | Ø22 mm | Ø22 mm | Ø27 mm | Ø27 mm |
| Spindle Speed | 200-8000 r.p.m. | 200-8000 r.p.m. | 200- 8000 r.p.m. | 200- 8000 r.p.m. | 200- 8000 r.p.m. | 200- 8000 r.p.m. | 200- 8000 r.p.m. | 200- 8000 r.p.m. |
| Main Spindle Indexing Angle | C axis | C axis | C axis | C axis | C axis | C axis | C axis | C axis |
| Back Spindle | ||||||||
| Back Spindle Hole Dia. | Ø13 mm | Ø13 mm | Ø17 mm | Ø17 mm | Ø22 mm | Ø22 mm | Ø27 mm | Ø27 mm |
| Back Spindle Speed | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) | 200-5000 r.p.m (200-8000 r.p.m Optional built-in motor) |
| Max. length for front ejection | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Sub Spindle Indexing Angle | C axis | C axis | C axis | C axis | C axis | C axis | C axis | C axis |
| Rapid Traverse | ||||||||
| X1, Y1, Z1, X2, Z2 | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| Motors | ||||||||
| Spindle Motor | 2.2 kW | 2.2 kW | 2.2 kW | 2.2 kW | 3.7 kW | 3.7 kW | 3.7 kW | 3.7 kW |
| Back Spindle Motor | 2.2 kW (2.2 kW Optional built-in motor) | 2.2 kW (2.2 kW Optional built-in motor) | 2.2 kW (2.2 kW Optional built-in motor) | 2.2 kW (2.2 kW Optional built-in motor) | 2.2 kW (3.7 kW Optional built-in motor) | 2.2 kW (3.7 kW Optional built-in motor) | 2.2 kW (3.7 kW Optional built-in motor) | 2.2 kW (3.7 kW Optional built-in motor) |
| X1, Y1 ,Z1, X2, Z2 Axes Motor | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW |
| Y2 Axis Motor (Option) | 1 kW | 1 kW | 1 kW | 1 kW | ||||
| Coolant Pump Motor | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP |
| Lubrication Motor | 4 W | 4 W | 4 W | 4 W | 4 W | 4 W | 4 W | 4 W |
| Driven Tools Motor-fixed Arm | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW |
| Driven Tools Motor-back Replaced Toolholder Set | - | 1.5 kW | - | 1.5 kW | - | 1.5 kW | - | 1.5 kw |
| (Option Y2 Axis) | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW |
| Machine Dimensions | ||||||||
| Center Height | 890 mm | 890 mm | 890 mm | 890 mm | 890 mm | 890 mm | 890 mm | 890 mm |
| Weight | 1890 kg | 1920 kg | 2040 kg | 2070 kg | 2090 kg | 2120 kg | 2140 kg | 2170 kg |
| Optional Y2 Axis | - | 2300 kg | - | 2450 kg | - | 2500 kg | - | 2550 kg |
| Machine Dimension | 2400 × 1430 × 1650 mm | 2400 × 1430 × 1650 mm (2690 x 1495 x 1890 Optional Y2 Axis ) | 2400 × 1430 × 1650 mm | 2400 × 1430 × 1650 mm (2690 x 1495 x 1890 Optional Y2 Axis ) | 2400 × 1430 × 1650 mm | 2400 × 1430 × 1650 mm (2690 x 1495 x 1890 Optional Y2 Axis ) | 2400 × 1430 × 1650 mm | 2400 × 1430 × 1650 mm (2690 x 1495 x 1890 Optional Y2 Axis ) |
| Air Pressure | ||||||||
| Air Pressure | 5kg/cm | 5kg/cm | 5kg/cm | 5 kg/cm | 5 kg/cm | 5 kg/cm | 5 kg/cm | 5 kg/cm |
| Air Supply | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min |
