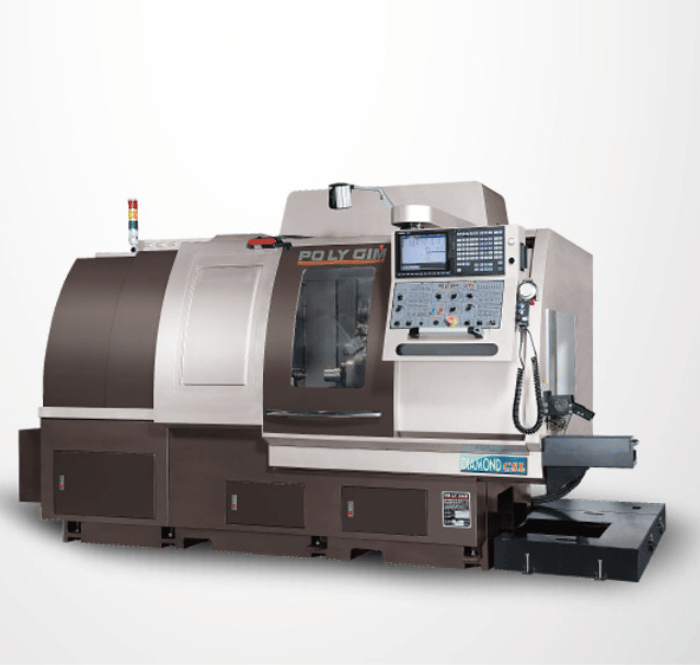

Diamond CSL 42-2Y

42-2Y

下載PDF檔案加入詢價車
    Main and Sub-Spindle are up to 42mm with12 stations power turret. Both built-in spindle are with CS axis indexing. This helps to obtain spindle rotation high accuracy and better surface finish during cutting operation.
特點介紹

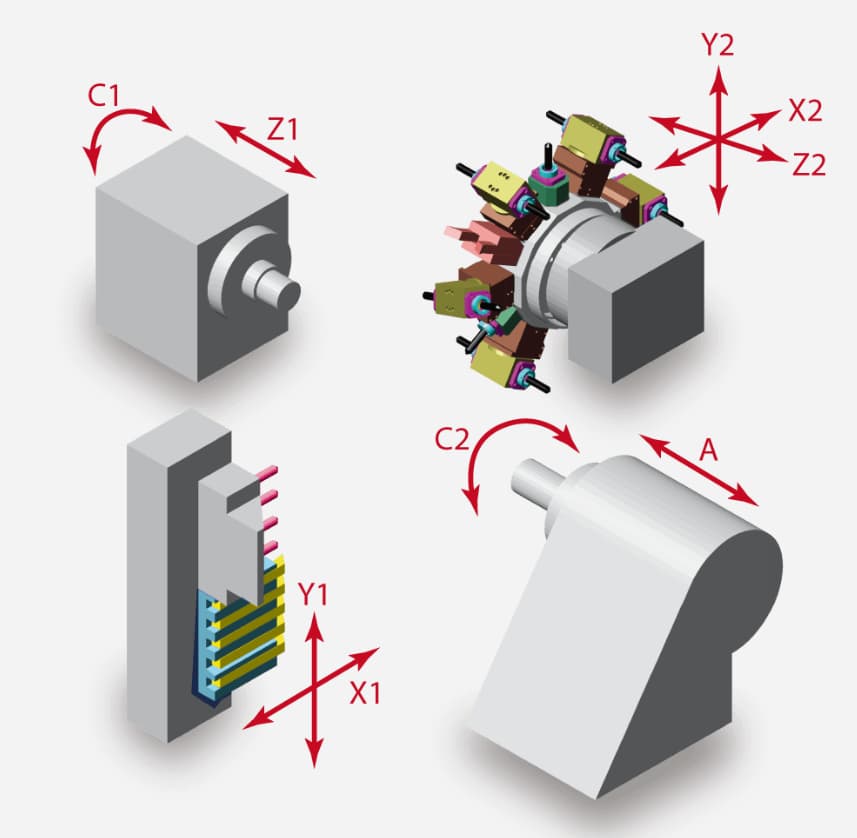

Diamond CSL 42-2Y offers up to 9 axes complex manufacturing capability using the most advanced multi-axes control system.

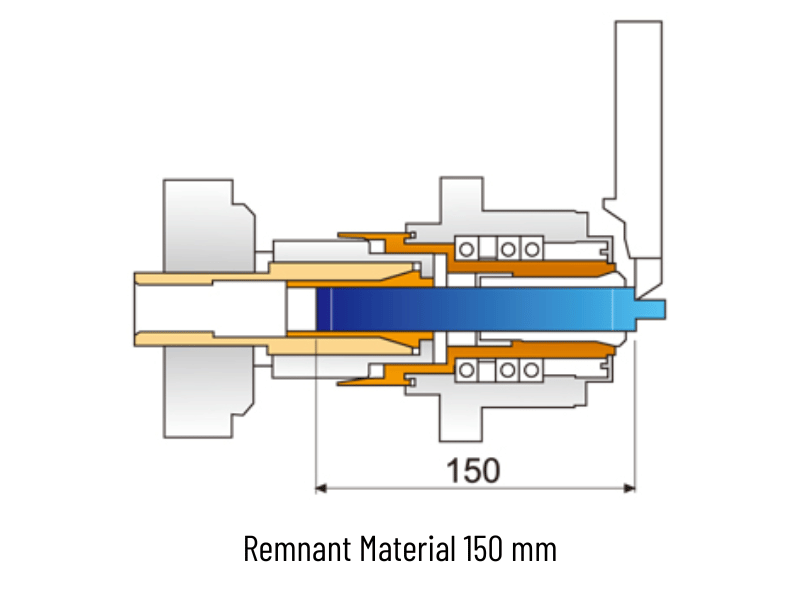

Using Live Bushing with Guide Bush

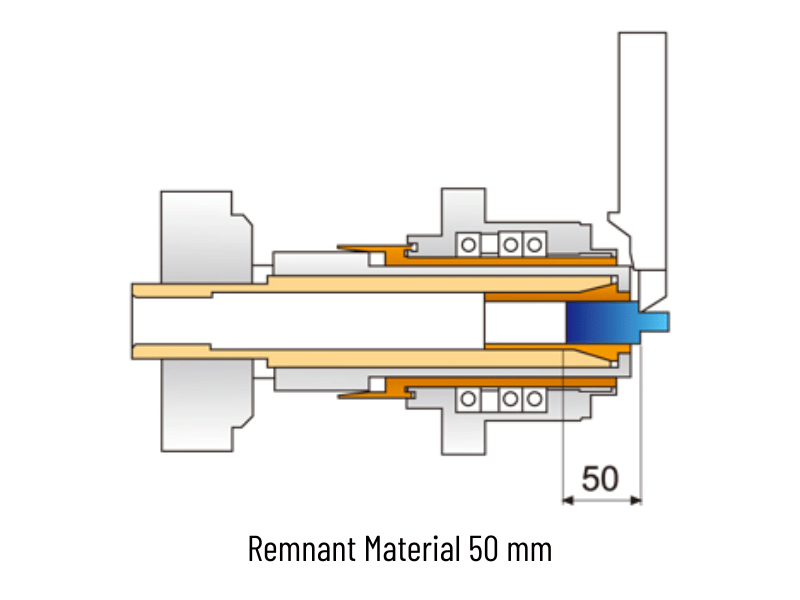

Using Rough Material Bushing without Guide Bush

2025polygim_extrap_35706_182826_4266234 (1).jpg

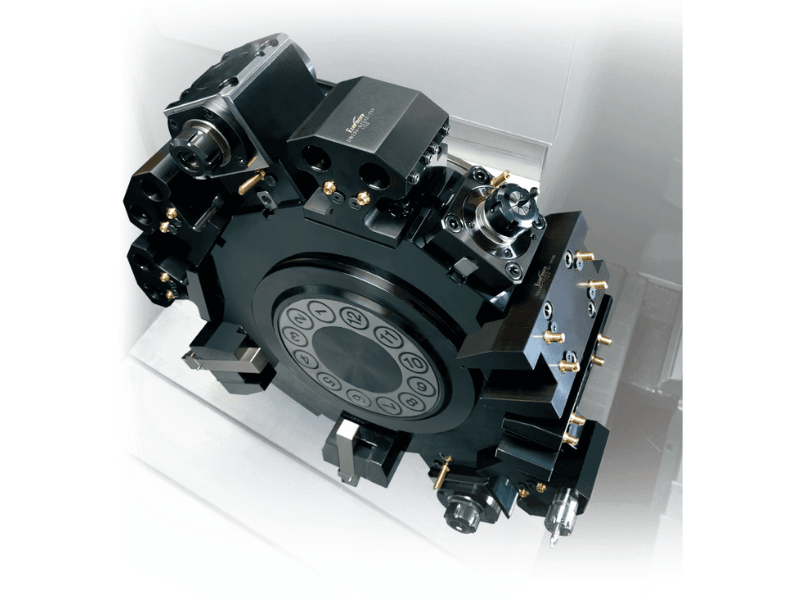

12 Stations Power Turret Can Do Double-side Processing

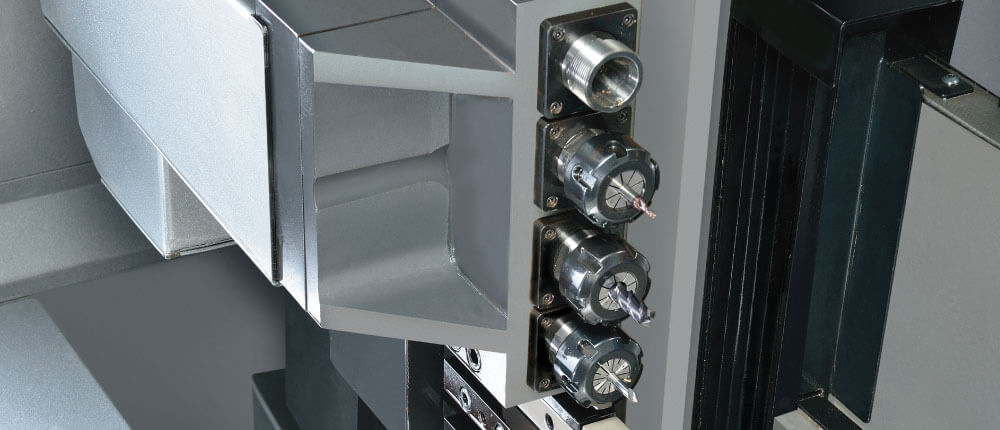

4 pcs Cross Working Driven Tool Holder

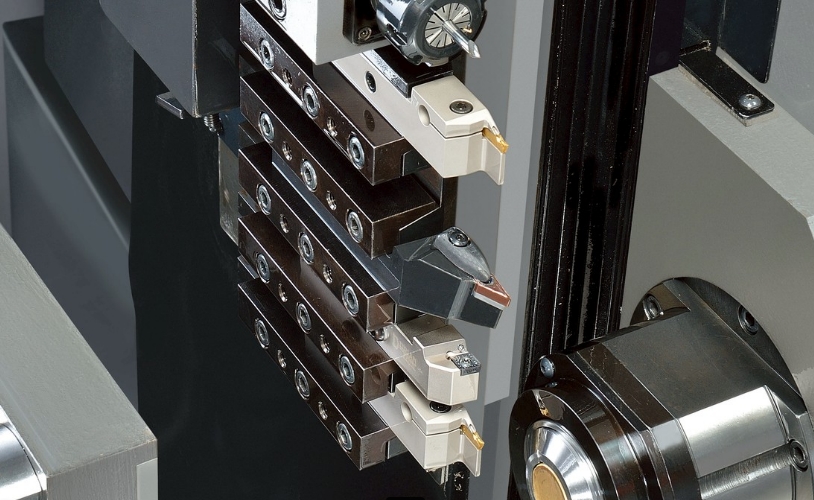

5 pcs O.D. Turning Tool Holder


標準配件
    Main spindle
    Sub-spindle
    CS Axis
    Working Light
    Coolant System
    Part off Detective Sensor
    Live Bushing
    Chip Conveyer
    Chip Bucket
    Part Catcher
    5 pcs O.D. Turning Tool Holder
    4 pcs Cross Working Driven Tool Holder
    4 pcs Double Side Turning Holder (Turret)
    4 pcs Double Boring Bar Holder (Turret)
    2 pcs Axial Drilling and Milling Head (Turret)
    2 pcs Radial Drilling and Milling Double Head (Turret)
    Rough Material Bushing(Max. Machining = Bar Diameter x 3)
選擇配件
    Double Side Turning Holder (Turret)
    Double Boring Bar Holder (Turret)
    Axial Drilling And Milling Head (Turret)
    Radial Drilling And Milling Double Head (Turret)
產品規格
ItemsY1 (System 1)Y2 (System 2)
Working Range
Max. Machining Dia.Ø42 mmØ42 mm
Max. Machining Length280 mm
Max. Drilling CapacityØ30 mmØ30 mm
Max. Tapping CapacityM16M16
Tooling System
O.D. Turning Tool5
O.D. Turning Tool Dimension□20x20x120
Cross Tool (power – driven tool)4
Cross Tool Dimension16 mm (ER25)
Cross Tool Speed200~6000 rpm
Power Turret
Power - driven Tool / Station
12
O.D. Tool Dimension
□20 x 20
I.D. Tool Dimension
Ø25 mm
Max. O.D. Turning Tool / Station
6
Max. I.D. bore Tool / Station
6
Power – driven Tool Dimension
16 mm (ER25)
Power – driven Tool Speed
200~4000 rpm
Max. Radial Mill / Drill Tool / Station
12
Max. Axial Mill / Drill Tool / Station
12
Spindle
Spindle Hole Dia.Ø42 mm
Spindle Speed200~6000 rpm
Sub-spindle
Sub-spindle Hole Dia.
Ø42mm
Sub-spindle Speed
200~6000rpm
Max. Length for Front Ejection
120 mm
Sub-spindle Max. Drilling Dia.
Ø30 mm
Sub-spindle Max. Tapping Dia.
M16
Rapid Speed
A axis
30m/min
X1, Z1, Y1 axes30m/min
X2, Z2, Y2 axes
30m/min
Travel
A axis
460 mm
X1 axis45 mm
Z1 axis300 mm
Y1 axis360 mm
X2 axis
140 mm
Z2 axis
470 mm
Y2 axis
170 mm
Motors
Main Spindle7.5 kW
Sub-spindle
7.5kW
Y1, Y2 axes1.5kW2.2kW
A, X1, Z1, X2, Z2 axes1.0 kW1.0 kW
Rotary Tools2.2 kW2.2 kW
Coolant Pump1 HP1 HP
Lubrication25 W25 W
Machine Dimensions
Center Height960 mm
Weight6380 kgs
Dimension3000 x 1800 x 1980 mm
Air
Air Pressure5kg/cm
Air Supply10L/min
* 我們保留更改設計的權利，恕不另行通知。
