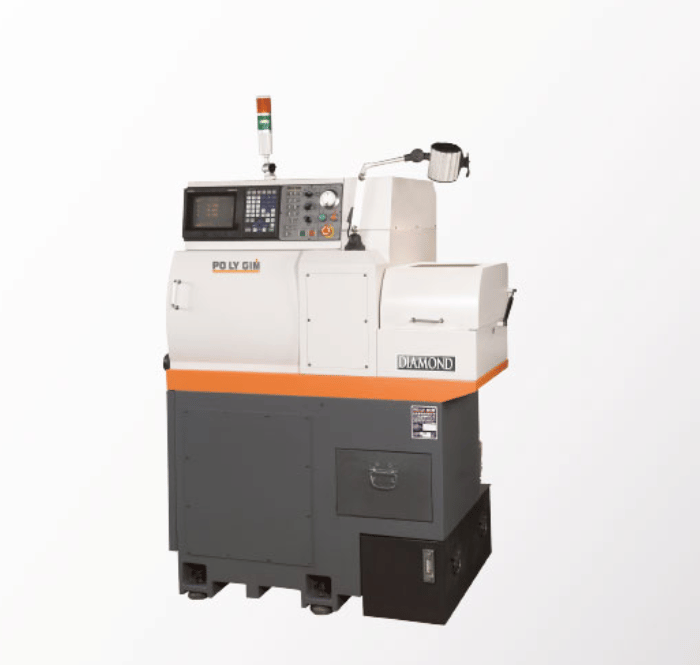

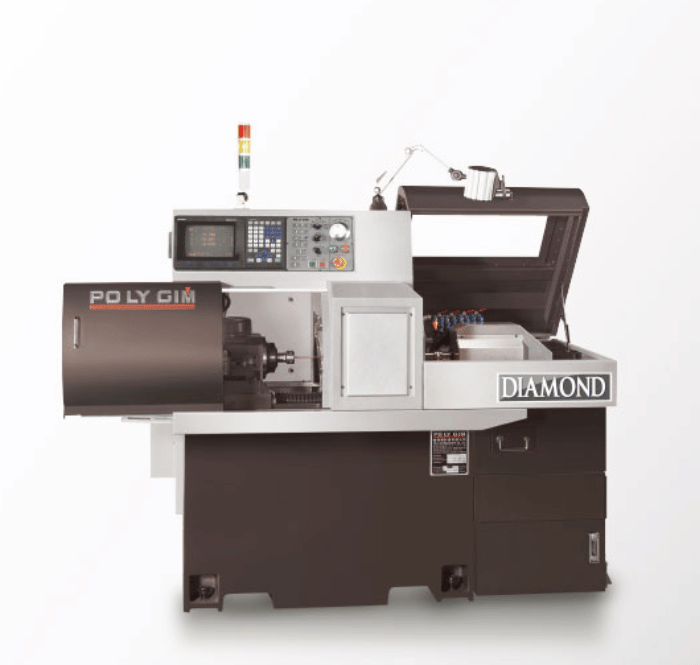

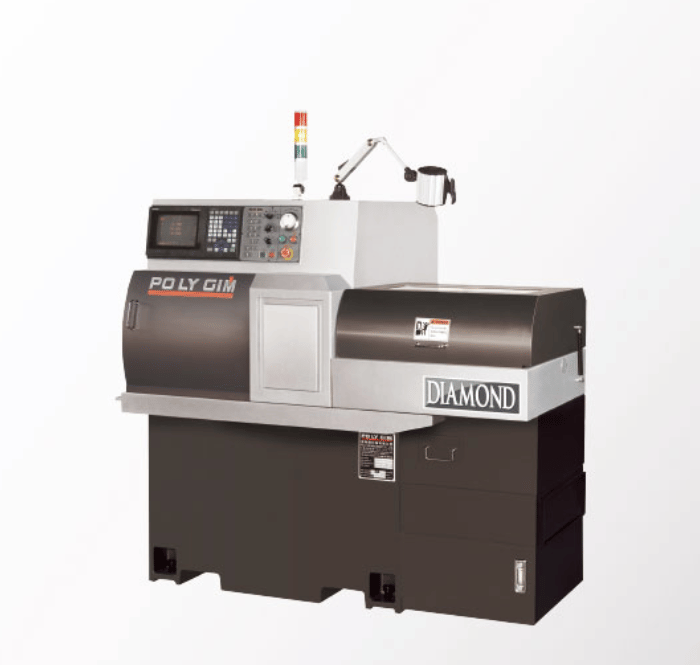

Diamond 12 Series

12/12CS/16/16CS

下載PDF檔案加入詢價車
    Short Remnant Material

    Raw Material Machining

    4 pcs I.D. stationary tool holder

    6 pcs O.D. turning tool holder

    The automatic lathe machine main is equipped with built-in motor, standard with C axis orientation, and optional high-analysis CS axis.
特點介紹

Revolutionize your machining operations with our Automatic Lathe Machines. Engineered for top-tier precision and efficiency, these machines are designed to tackle complex tasks effortlessly. Their automated capabilities eliminate manual errors and increase throughput, making them ideal for any high-volume, high-precision industry. User-friendly and durable, our Automatic Lathe Machines offer a robust and efficient solution for your manufacturing needs.

2025polygim_extrap_99845_172930_1127279 (1).png

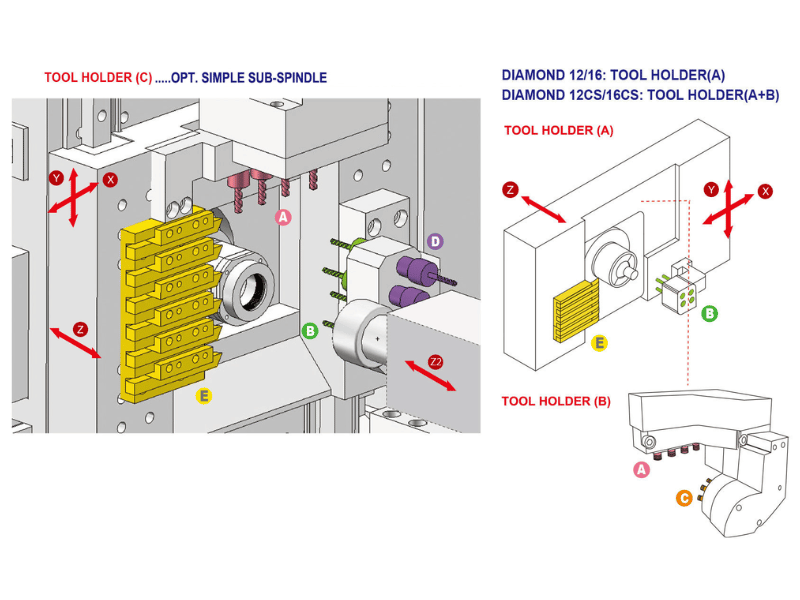

Tool Holder:

A: 4 pcs cross working driven tool holder
B: 4 pcs I.D. stationary tool holder
C: 3pcs front working driven tool holder(opt.)
D: 4 pcs back I.D. stationary tool holder
E: 6 pcs O.D. turning tool holder

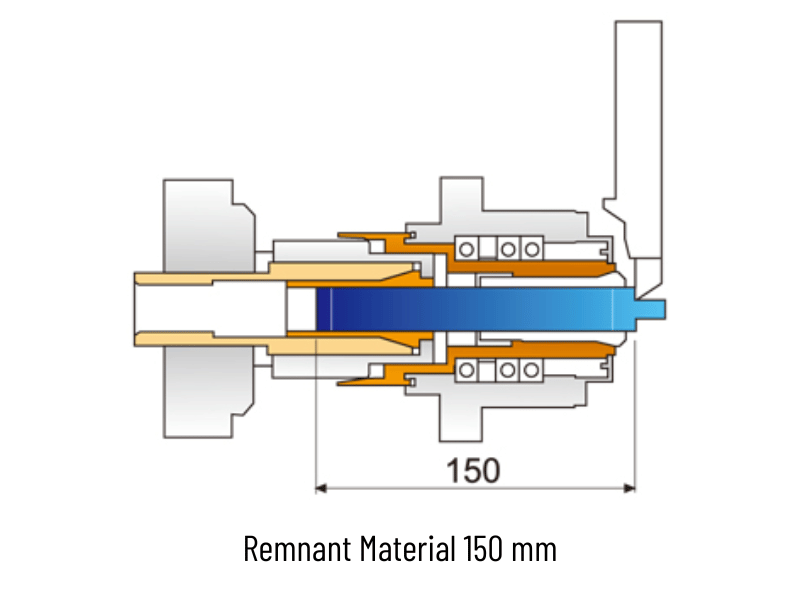

Using Live Bushing with Guide Bush

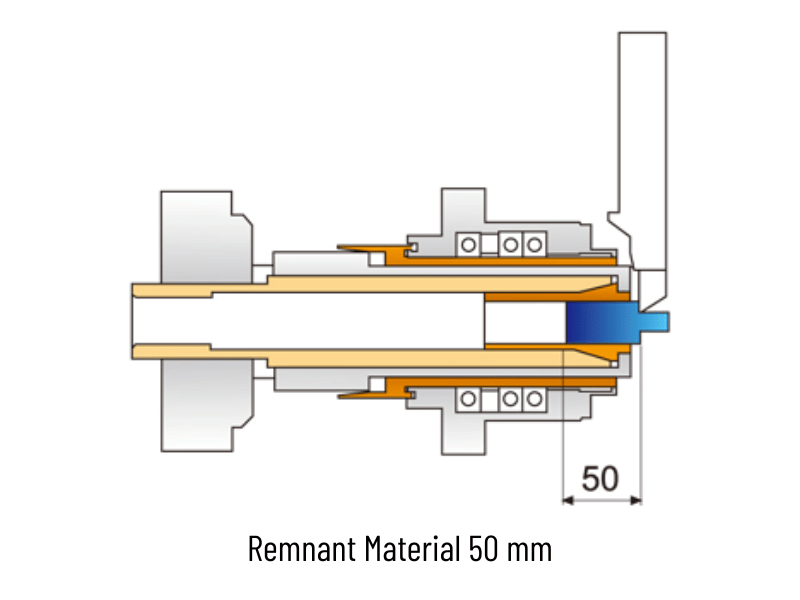

Using Rough Mateial Bushing without Guide Bush

標準配件
    Main spindle C axis indexing (Except DIAMOND 12/16)
    Part off detective sensor
    Coolant system
    Working light
    Part catcher
    Chip tray
    Fixed bushing
    Cross working driven tool holder (Except DIAMOND 12/16)
選擇配件
    Front off-center driven tool holder (The optional simple sub-spindle does not have this configuration) (Only for DIAMOND 12CS/16CS)
    Main spindle CS axis 0.01° indexing (Only for 12CS/16CS)
    Rough material bushing
    Live Bushing
    Simple sub-spindle (rear clamping device)
    Chip conveyor + bucket (Only with simple sub-spindle has this option)
產品規格
ItemsDIAMOND 12DIAMOND 12CSDiamond 16Diamond 16CS
Working Range
Max. Turning Dia.Ø12.7 mmØ12.7 mmØ16.5 mmØ16.5 mm
Max. maching length per chucking145 mm145 mm145 mm145 mm
Max. Drilling Dia.Ø7 mmØ7 mmØ10 mmØ10 mm
Max. Tapping DiaM6M6M8M8
O.D. Tooling
Number of Tools6666
Dimension□10 ×10 ×100□10 ×10 ×100□10 ×10 ×100□10 ×10 ×100
I.D. Tooling
Number of Tools4444
Dimension7 mm (ER11)7 mm (ER11)10mm (ER16)10mm (ER16)
Cross Working Driven Tooling
Number of Tools-4-4
Dimension-7 mm (ER11)-10 mm (ER16)
Speed-200~3000 rpm-200~3000 rpm
Front Working Driven Tooling
Number of Tools-3-3
Dimension-7mm (ER11)-10 mm (ER16)
Speed-200~3000rpm-200~3000 rpm
Main Spindle
Spindle hole dia.Ø13 mmØ13 mmØ17 mmØ17 mm
Spindle Speed200- 8,000 r.p.m.200- 8,000 r.p.m.200- 8,000 r.p.m.200- 8,000 r.p.m.
Spindle indexing angle-C axis (opt. CS axis 0.01° indexing)-C axis (opt. CS axis 0.01° indexing)
Rapid Traverse
X1, Y1, Z1 axes30 M30 M30 M30 M
Motors
Main spindle motor2.2 kW2.2 kW2.2 kW2.2 kW
X1, Y1, Z1 axes motor1 kW1 kW1 kW1 kW
Coolant Pump1/4 HP1/4 HP1/4 HP1/4 HP
Lubrication4 w4 w4 w4 w
Driven tools motor-1kW-1 kW
Machine Dimensions
Center Height1050 mm1050 mm1050 mm1050 mm
Weight1188 kg1208 kg1220 kg1240 kg
Machine Dimension1200 x 900 x 1750 mm1200 x 900 x 1750 mm1200 x 900 x 1750 mm1200 x 900 x 1750 mm
Air Pressure
Air Pressure5kg/cm5kg/cm5kg/cm5 kg/cm
Air Supply10 L/min10 L/min10 L/min10 L/min
OPTIONAL-Simple Sub-spindle(Rear Clamping Device)
Simple sub-spindle motor1 kW1 kW1 kW1 kW
Simple sub-spindle speed3000 rpm3000 rpm3000 rpm3000 rpm
Z2 axis motor1 kW1 kW1 kW1 kW
Z2 axis rapid traverse18 M18 M18 M18 M
Number of back I.D Tools4444
Dimension of back I.D Tools7 mm (ER11)7 mm (ER11)10 mm (ER16)10 mm (ER16)
Machine weight1350 kg1370 kg1390 kg1410 kg
Dimension1882 x 1246 x 1860 mm1882 x 1246 x 1860 mm1882 x 1246 x 1860 mm1882 x 1246 x 1860 mm
* 我們保留更改設計的權利，恕不另行通知。
