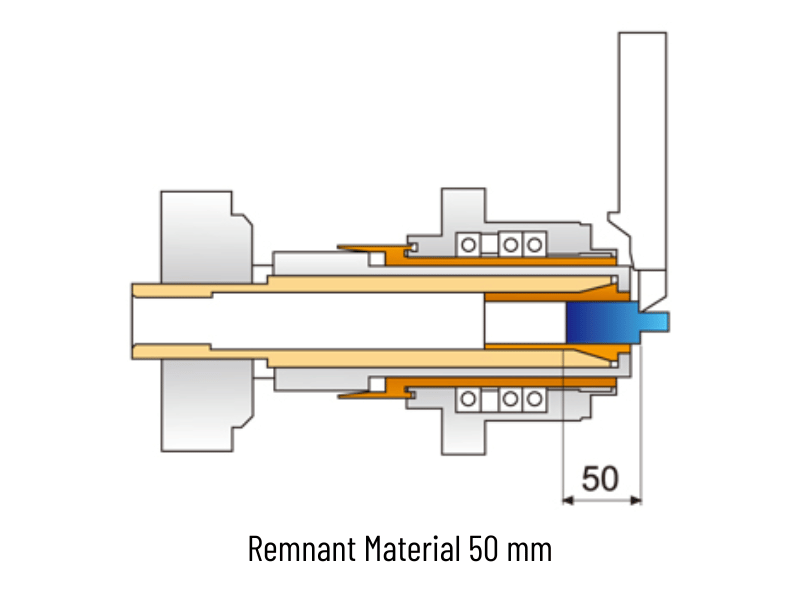

Using Live Bushing with Guide Bush

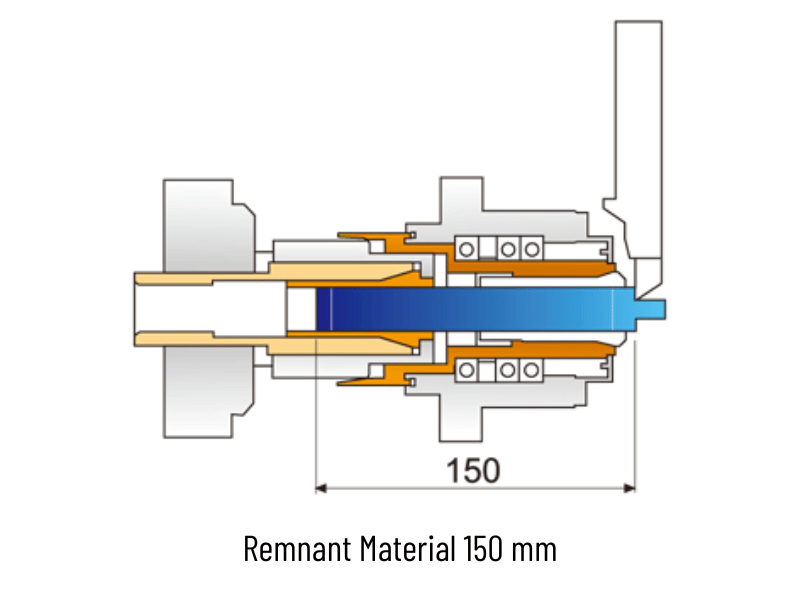

Using Rough Material Bushing without Guide Bush

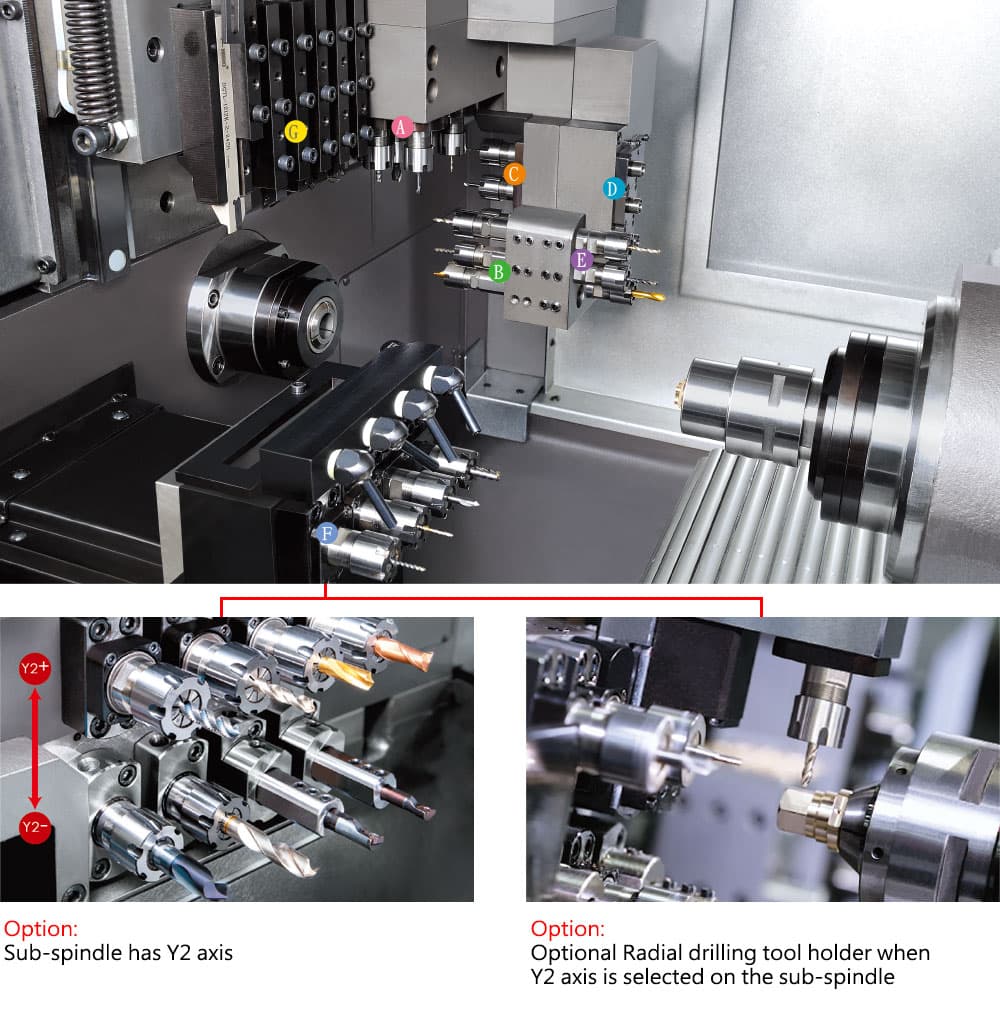

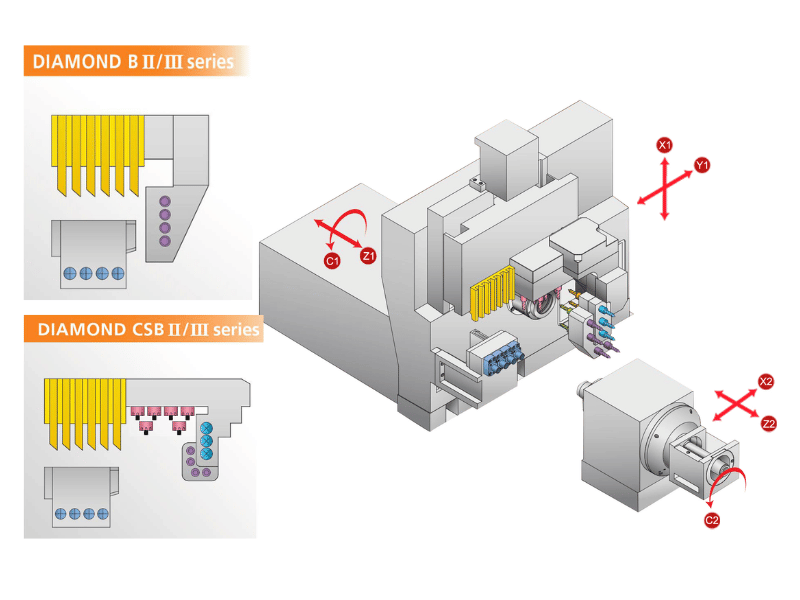

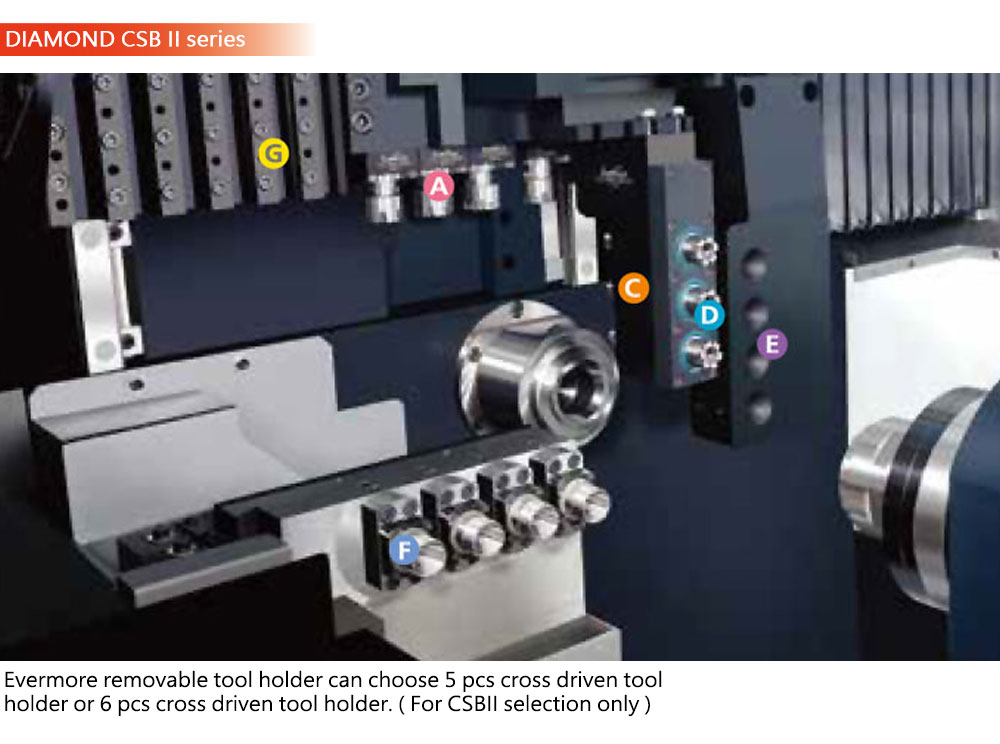

A: 6 pcs cross working driven tool holder
B: 4 pcs I.D. stationary tool holder
C: 3 pcs front working driven tool holder
D: 3 pcs back working driven tool holder
E: 4 pcs back I.D. stationary tool holder
F: 4 pcs back I.D. stationary / working driven tool holder
G: 6 pcs O.D. turning tool holder (42Type with5 pcs O.D. turning tool)

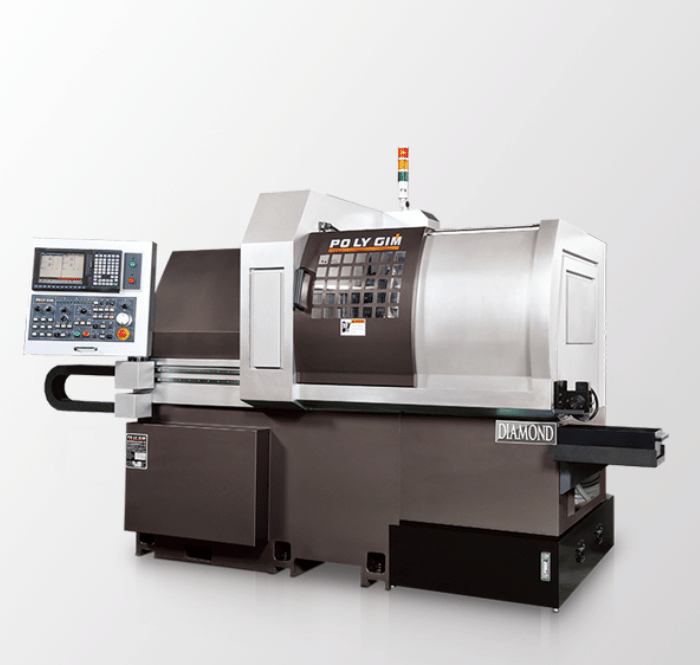

| Items | Diamond 20B II | Diamond 20CSB II | Diamond 32B II | Diamond 32CSB II | Diamond 42B II | Diamond 42CSB II |
|---|---|---|---|---|---|---|
| Working Range | ||||||
| Max. Machining Dia. | Ø20 mm | Ø20 mm | Ø32 mm | Ø32 mm | Ø42 mm | Ø42 mm |
| Max. Machining Length Per Chucking | 240 mm | 240 mm | 240 mm | 240 mm | 240 mm | 240 mm |
| Max. Drilling Dia.aMax. Drilling Dia. (Main / Sub Spindle) | Ø12 mm | Ø12 mm | Ø15 mm | Ø15 mm | Ø15 mm | Ø15 mm |
| Max.Tapping Dia. (Main / Sub Spindle) | M10 | M10 | M12 | M12 | M12 | M12 |
| O.D. Tooling | ||||||
| Number of Tools | 6 | 6 | 6 | 6 | 5 | 5 |
| Dimension | □12 × 12 × 120 | □12 × 12 × 120 | □16 ×16 ×120 | □16 ×16 ×120 | □16 ×16 ×120 | □16 ×16 ×120 |
| I.D. Tooling | ||||||
| Number of Tools | 4 | 4 | 4 | 4 | 4 | 4 |
| Dimension | 10mm (ER16) | 10mm (ER16) | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) |
| Cross Working Driven Tooling | ||||||
| Number of Tools | - | 6 | - | 6 | - | 6 |
| Dimension | - | 10 mm (ER16) | - | 13 mm (ER20) | - | 13 mm (ER20) |
| Cross Spindle Speed | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. |
| Front Working Driven Tooling | ||||||
| Number of Tools | - | 3 | - | 3 | - | 3 |
| Dimension | - | 10 mm (ER16) | - | 13 mm (ER20) | - | 13 mm (ER20) |
| Spindle Speed | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. | - | 200-6000 r.p.m. |
| Back I.D. Tooling | ||||||
| Number of Tools | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 | 4+4 |
| Dimension | 10 mm (ER16) | 10 mm (ER16) | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) | 13 mm (ER20) |
| Back Working Driven Tooling | ||||||
| Number of Tools | - | 3 | - | 3 | - | 3 |
| Dimension | - | 7 mm (ER11) | - | 10 mm (ER16) | - | 10 mm (ER16) |
| Number of Tools | - | 4 | - | 4 | - | 4 |
| Dimension | - | 10 mm (ER16) | - | 13 mm (ER20) | - | 13 mm (ER20) |
| Spindle Speed | - | 3000 r.p.m. | - | 3000 r.p.m. | - | 3000 r.p.m. |
| Spindle | ||||||
| Spindle Hole Dia. | Ø22 mm | Ø22 mm | Ø35 mm | Ø35 mm | Ø45 mm | Ø45 mm |
| Spindle Speed | 200-8000 r.p.m. | 200-8000 r.p.m. | 200- 7000 r.p.m | 200- 7000 r.p.m | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Main Spindle Indexing Angle | C axis | C axis | C axis | C axis | C axis | C axis |
| Back Spindle | ||||||
| Back Spindle Hole Dia. | Ø22 mm | Ø22 mm | Ø35 mm | Ø35 mm | Ø45 mm | Ø45 mm |
| Back Spindle Speed | 200-8000 r.p.m. | 200-8000 r.p.m. | 200- 7000 r.p.m. | 200- 7000 r.p.m. | 200-5000 r.p.m. | 200-5000 r.p.m. |
| Max. length for front ejection | 60 mm | 60 mm | 60 mm | 60 mm | 80 mm | 80 mm |
| Sub Spindle Indexing Angle | C axis | C axis | C axis | C axis | C axis | C axis |
| Rapid Traverse | ||||||
| X1, Y1, Z1, X2, Z2 | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min | 30 m/min |
| Motors | ||||||
| Spindle Motor | 3.7 kW | 3.7 kW | 5.5 kW | 5.5 kW | 7.5 kW | 7.5 kW |
| Back Spindle Motor | 3.7 kW | 3.7 kW | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW |
| X1, Y1 ,Z1, X2, Z2 Axes Motor | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW |
| Y2 Axis Motor (Option) | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW | 1 kW |
| Coolant Pump Motor | 1 HP x 2 | 1 HP x 2 | 1 HP x 2 | 1 HP x 2 | 1 HP x 2 | 1 HP x 2 |
| Lubrication Motor | 4 W x 2 | 4 W x 2 | 4 W x 2 | 4 W x 2 | 4 W x 2 | 4 W x 2 |
| Driven Tools Motor-fixed Arm | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW |
| Driven Tools Motor-back Replaced Toolholder Set | - | 1.5 kW | - | 1.5 kW | - | 1.5 kW |
| (Option Y2 Axis) | - | 2.2 kW | - | 2.2 kW | - | 2.2 kW |
| Machine Dimensions | ||||||
| Center Height | 1050 mm | 1050 mm | 1050 mm | 1050 mm | 1050 mm | 1050 mm |
| Weight | 3140 kg | 3170 kg | 3390 kg | 3420 kg | 3710 kg | 3740 kg |
| Optional Y2 Axis | - | 3550 kg | - | 3800 kg | - | 4120 kg |
| Machine Dimension | 2500 × 1280 × 1780 mm | 2500 × 1280 × 1780 mm | 2500 × 1280 × 1780 mm | 2500 × 1280 × 1780 mm | 2500 × 1280 × 1780 mm | 2500 × 1280 × 1780 mm |
| Air Pressure | ||||||
| Air Pressure | 5kg/cm | 5kg/cm | 5kg/cm | 5 kg/cm | 5 kg/cm | 5 kg/cm |
| Air Supply | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min | 10 L/min |
