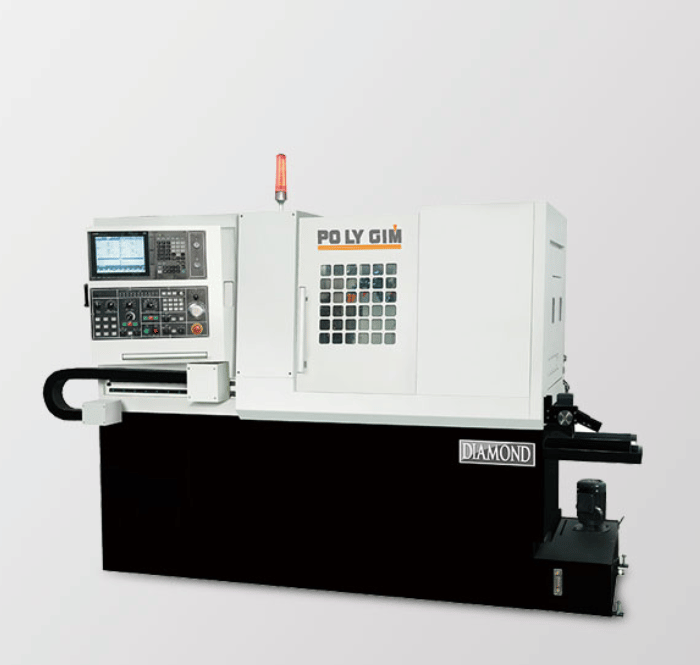

Diamond CSBIV Series

12/20 CSBIV

下載PDF檔案加入詢價車
    Cross travel sub-spindle: Cross travel sub-spindle design. The main and sub spindles can work either one at a time or simultaneously for reduced machining duration. This design brings multi-function front and rear machining.

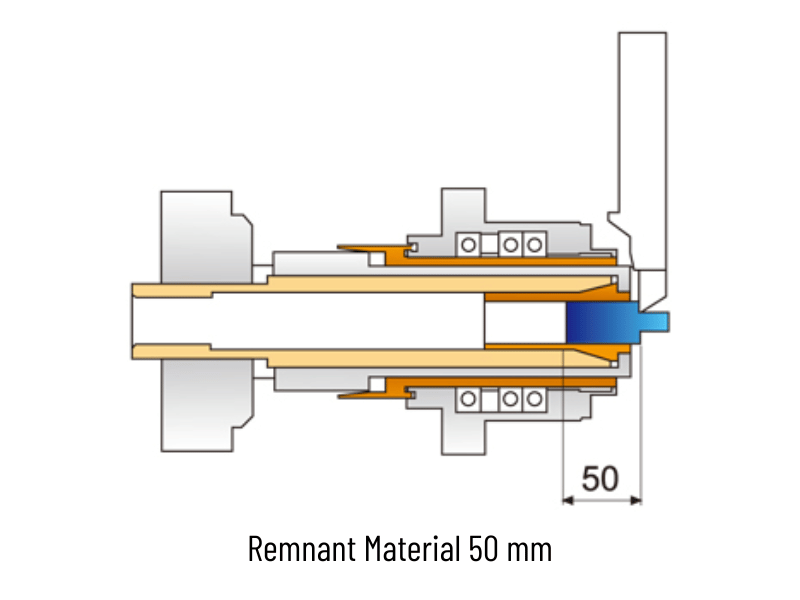

    Short remnant material: With the optional rough material bushing, the remnant material can be 50mm (depending on the part length).

    Raw material machining: 0.1mm material tolerance can be achieved by using the Rough material bushing.

    The main / sub-spindle are equipped with built-in motor, standard with C axis orientation, and optional high-analysis CS axis.
特點介紹

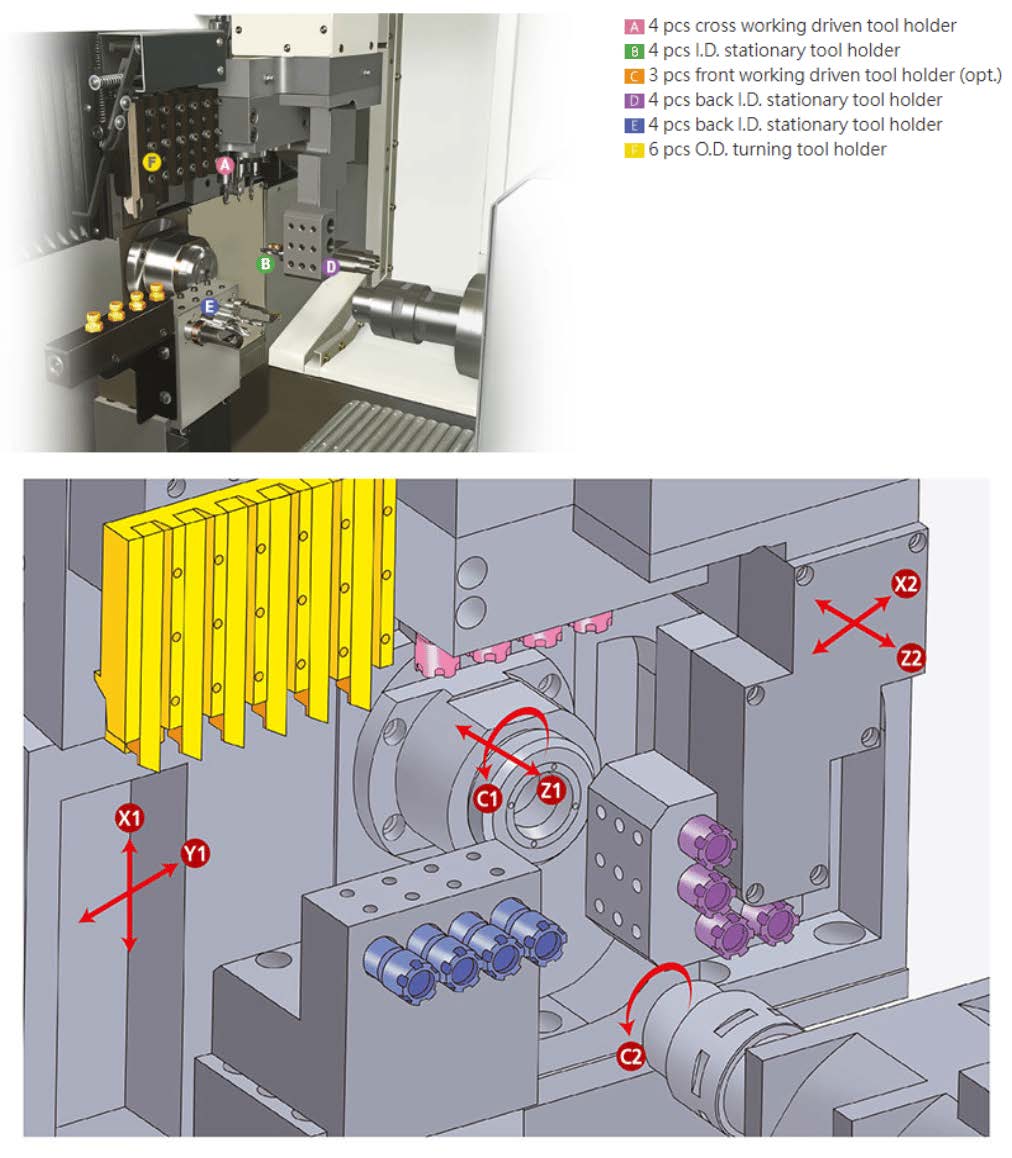

Examples

A: 4 pcs cross working driven tool holder
B: 4 pcs I.D. stationary tool holder
C: 3 pcs front working driven tool holder (opt.)
D: 4 pcs back I.D. stationary tool holder
E: 4 pcs back I.D. stationary tool holder
F: 6 pcs O.D. turning tool holder

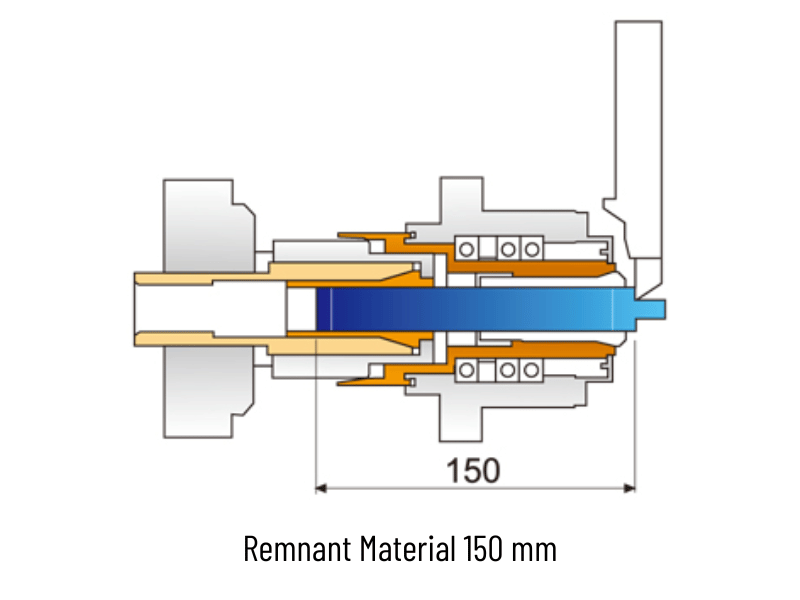

Using Live Bushing with Guide Bush


Using Rough Material Bushing without Guide Bush


標準配件
    Main spindle C axis orientation
    Sub-spindle C axis orientation
    Working light
    Coolant system
    Part off detective sensor
    Live bushing
    Part catcher
    6 pcs O.D. turning tool holder
    4 pcs front+4 pcs back I.D. stationary tool holder
    4 pcs cross working driven tool holder
    4 pcs back I.D stationary tool holder
選擇配件
    3 pcs front working driven tool holder
    Main & sub-spindle CS axis orientation
    Fixed bushing
    Rough material bushing
    Chip conveyor + bucket
產品規格
ItemsDIAMOND 12CSBIVDIAMOND 20CSBIV
Working Range
Max. Machining Dia.Ø12.7 mmØ20 mm
Max. Machining Length Per Chucking150 mm150 mm
Max. Drilling Dia. (Main Spindle)Ø7 mmØ10 mm
Max. Drilling Dia. (Sub Spindle)Ø7mmØ7mm
Max. Tapping Dia. (Main Spindle)M6M8
Max.Tapping Dia. (Sub Spindle)M6M6
O.D. Tooling
Number of Tools66
Dimension□12 × 12 × 120□12 × 12 × 120
I.D. Tooling
Number of Tools44
Dimension10mm (ER16)10mm (ER16)
Cross Working Driven Tooling
Number of Tools44
Dimension10 mm (ER16)10 mm (ER16)
Cross Spindle Speed200~6,000rpm200-6000 r.p.m.
Front Working Driven Tooling
Number of Tools33
Dimension10mm (ER16)10mm (ER16)
Speed200~6000 rpm200~6000 rpm
Back I.D. Tooling
Number of Tools4+44+4
Dimension10 mm (ER16) / Ø20 mm10 mm (ER16) / Ø20 mm
Main Spindle
Spindle Hole Dia.Ø13 mmØ22 mm
Spindle Speed200~8000 rpm200~8000 rpm
Main Spindle Indexing AngleC axisC axis
Sub-Spindle
Spindle hole dia.Ø13 mmØ22 mm
Spindle speed200~8000 rpm200~8000 rpm
Max. length for front ejection50 mm50 mm
Sub Spindle Indexing AngleC axisC axis
Rapid Traverse
X1,Y1,Z1 axes30 m/min30 m/min
X2,Z2 axes15 m/min15 m/min
Motors
Spindle motor2.2 kW2.2 kW
Sub-spindle motor2.2 kW2.2 kW
X1, Y1, Z1, X2, Z2 Axes Motor1 kW1 kW
Coolant Pump Motor1 HP1 HP
Lubrication Motor4 W4 W
Driven tools motor1.5 kW1.5 kW
Machine Dimensions
Center Height890 mm890 mm
Weight2150 kg2,180 kg
Machine Dimension2500 x 1380 x 1800 mm2500 x 1380 x 1800 mm
Air Pressure
Air Pressure5kg/cm5kg/cm
Air Supply10 L/min10 L/min
* 我們保留更改設計的權利，恕不另行通知。
