Diamond 25/32/42 CSL Series

25/32/42 CSL

下載PDF檔案加入詢價車

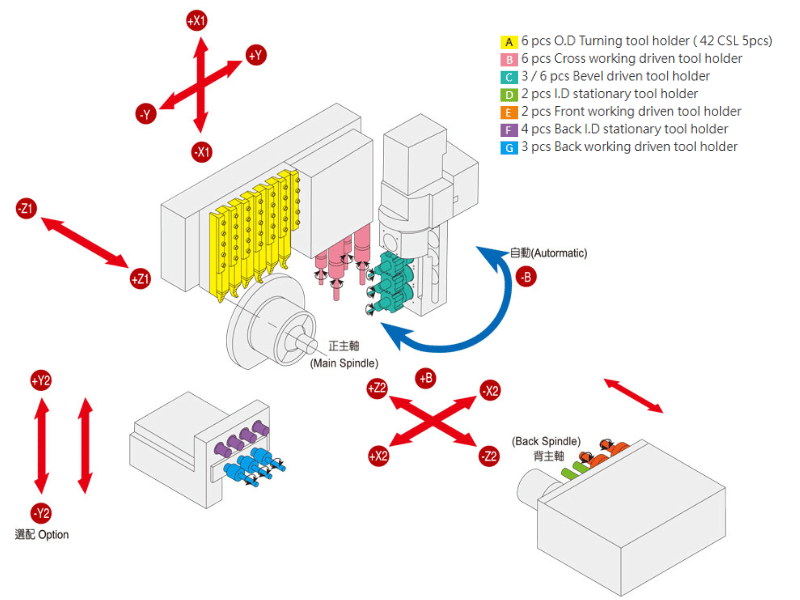

    Cross spindle and bevel driven tool holes will help you to do drilling, milling and tapping on cross side and bevel.

    Cross travel sub-spindle design, the main and sub-spindle can work either one at a time or simultaneously for reduced machining duration.

    This design bring multi-function front and rear machining.

    The B-axis bevel driven tool holder can be rotated 360 degrees to facilitate bevel drilling, milling and tapping with the main and rear spindle.
特點介紹

Discover the future of precision machining with our Sliding Head Turning solutions. These machines bring together Swiss Type CNC technology and advanced sliding head capabilities for unparalleled accuracy. Ideal for intricate parts and complex geometries, our Sliding Head Turning machines are engineered for high-speed, high-quality output. Elevate your machining process to new heights of efficiency with these cutting-edge systems.

2024polygim_extrap_59565_174607_6907861 (1).jpg

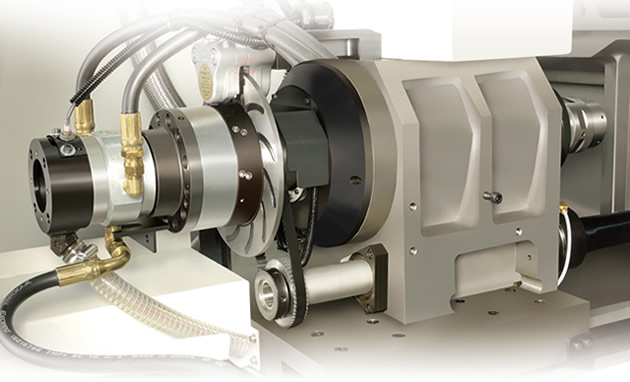

Main spindle is equipped with built-in motor, and the standard is equipped with C axis. A high-analytic CS axis is optional.

2024polygim_extrap_38570_173008_7471019 (1).jpg

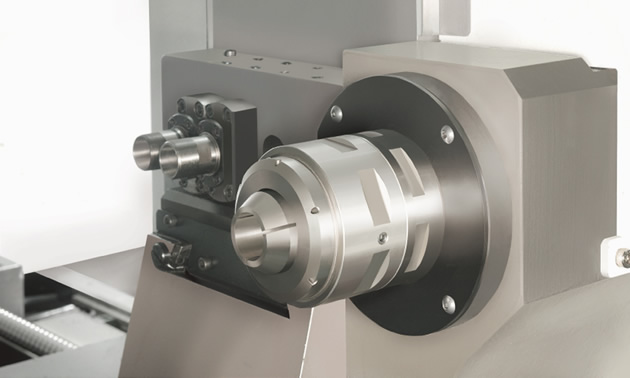

Sub-spindle is equipped with servo motor, and the standard is 5 degree indexing. C-axis is optional.

There are 2 fixed and 2 power drills on the tool holder beside the sub-spindle, which can move forward and backward. It is suitable for deep hole processing.



Examples

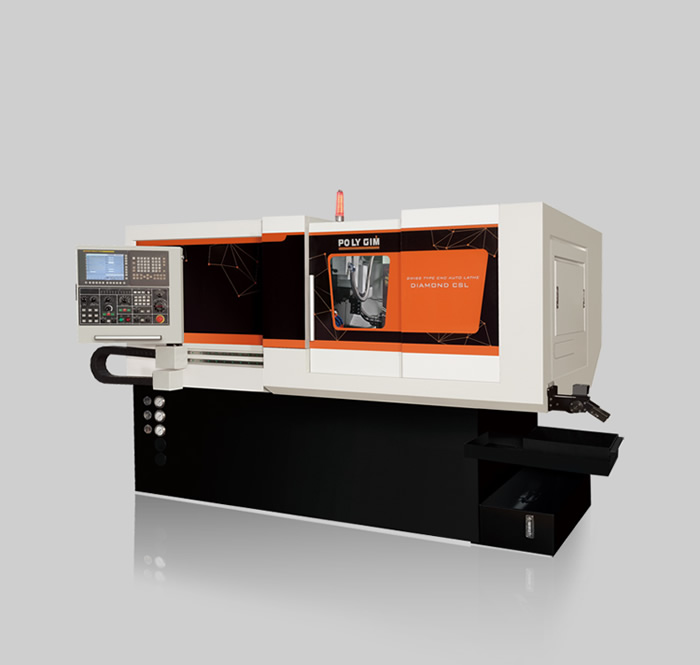

Model: Swiss Type CNC Lathe (Sliding Head Turning) - DIAMOND 25/32/42 CSL



標準配件
    Controller : Mitsubishi
    Main spindle C axis orientation
    Back spindle 5º orientation
    Working light
    Coolant system
    Part off detective sensor
    Part catcher
    Live bushing
    O.D turning tool holder ----- 5~7pcs
    Front I.D stationary tool holder ----- 2~3pcs
    Back I.D stationary tool holde ----- 4pcs

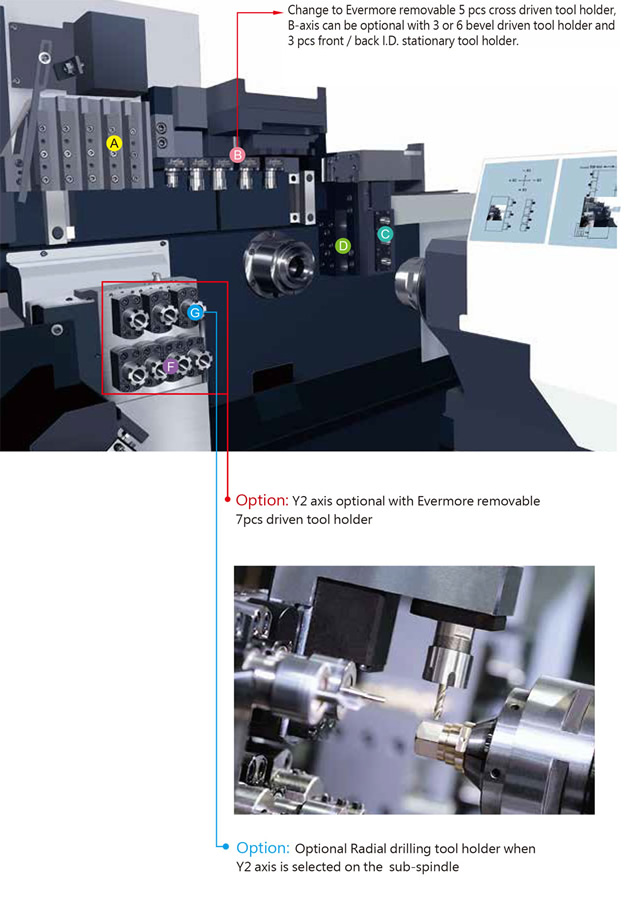

    Cross working driven tool holder ----- 6 / 5pcs (with Evermore)
選擇配件
    Controller : Fanuc
    Front working driven tool holder ----- 2pcs
    360° b-axis bevel driven tool holder ----- 3/6/8pcs
    Back working driven tool holder ----- 3 / 7 pcs (Opt. Evermore)
    CS axis ( 0.001° orientation-Fanuc / 0.01° orientation-Mitsubishi) ----- Main spindle
    C axis ----- Sub-spindle
    Chip conveyer + Bucket
    Rough material bushing
    Y2 Axis
產品規格
Items25 CSL32 CSL42 CSL
Working Range
Max. Turning Dia.Ø26mmØ32mmØ42mm
Max. maching length per chucking250mm250mm250mm
Max. Drilling Dia.Ø15mmØ15mmØ15mm
Max. Tapping DiaM12M12M12
Tooling System
O.D.Tooling(B axis with 3/6 pcs)665
O.D.Tooling(B axis with 8 pcs)776
O.D.Tool Dimension□16x16x120□16x16x120□16x16x120
(Front) I.D. Tooling(B axis with 3/6 pcs)222
(Front) I.D. Tooling(B axis with 8 pcs)332
Tool Dimension13 mm (ER20)13 mm (ER20)13 mm (ER20)
(Back) I.D.Tooling444
Tool Dimension(B axis with 3 pcs)13 mm (ER20)13 mm (ER20)13 mm (ER20)
Cross Tooling666
Tool Dimension13 mm (ER20)13 mm (ER20)13 mm (ER20)
Speed200~6000rpm200~6000 r.p.m.200~6000 r.p.m.
(Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs)3/63/63/6
(Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs)888
Tool Dimension(B axis with 3 pcs)13mm (ER20)13mm (ER20)13mm (ER20)
Speed100~6000rpm100~6000rpm100~6000rpm
(Opt.) Front Drilling Tooling222
Tool Dimension13mm (ER20)13mm (ER20)13mm (ER20)
Speed200~6000rpm200~6000rpm200~6000rpm
(Opt.) Back Drilling Tooling333
Tool Dimension13mm (ER20)13mm (ER20)13mm (ER20)
Speed100~4000rpm100~4000rpm100~4000rpm
Spindle
Spindle Hole Dia.Ø26mmØ33mmØ42mm
Spindle Speed200~7000rpm200~7000rpm200~5000rpm
IndexingC axisC axisC axis
Back Spindle
Back Spindle Hole Dia.Ø25mmØ33mmØ42mm
Back Spindle Speed200~6000rpm200~6000rpm200~5000rpm
Indexing5°5°5°
Max. length for front ejection70mm70mm70mm
Max. workpiece projection length from the back spindle120mm120mm120mm
Max.Back Drilling Dia.Ø16mmØ16mmØ16mm
Max. Back Tapping Dia.M12M12M12
Rapid Traverse
X1, Z1, Y1, X2, Z2 Axes18 or 30 m/min18 or 30 m/min18 or 30 m/min
(Opt.) Y2 Axis18 or 30 m/min18 or 30 m/min18 or 30 m/min
Motors
Main Spindle Motor5.5kW5.5kW7.5kW
Back Spindle Motor3.7kW3.7kW3.7kW
X1, Z1, Y1, X2, Z2 Axes Motor1kW1kW1kW
(Opt.) Y2, B Axes Motor1kW1kW1kW
Cross driven spindle Motor2.2kW2.2kW2.2kW
(Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs)1kW1kW1kW
(Opt.) Bevel driven spindle Motor(B axis with 8 pcs)2.2kW2.2kW2.2kW
(Opt.) Back driven spindle Motor0.75kW0.75kW0.75kW
(Opt. Y2 Axis) Back driven spindle Motor1.5kW1.5kW1.5kW
Coolant Pump0.75kW x 20.75kW x 20.75kW x 2
Lubrication4W x 24W x 24W x 2
Machine Dimensions
Center Height960mm / 1020mm(a plug-in electrical cabinet)960mm / 1020mm(a plug-in electrical cabinet)960mm / 1020mm(a plug-in electrical cabinet)
Weight(Standard)3988 / 4368(Opt. Y2)3988 / 4368(Opt. Y2)4088 / 4468(Opt. Y2)
Weight(a plug-in electrical cabinet)4550 / 4930(Opt. Y2)4550 / 4930(Opt. Y2)4650 / 5030(Opt. Y2)
Machine Size(Standard)3000x1540x1940 mm3000x1540x1940 mm3000x1540x1940 mm
Machine Size(a plug-in electrical cabinet)3220x1800x2005 mm3220x1800x2005 mm3220x1800x2005 mm
Air
Air Pressure5kg/cm5kg/cm5kg/cm
Air Supply10L/min10L/min10L/min
* 我們保留更改設計的權利，恕不另行通知。
