Diamond CSL 12-2Y/ 16-2Y Series

12-2Y/ 16-2Y

下載PDF檔案加入詢價車
特點介紹

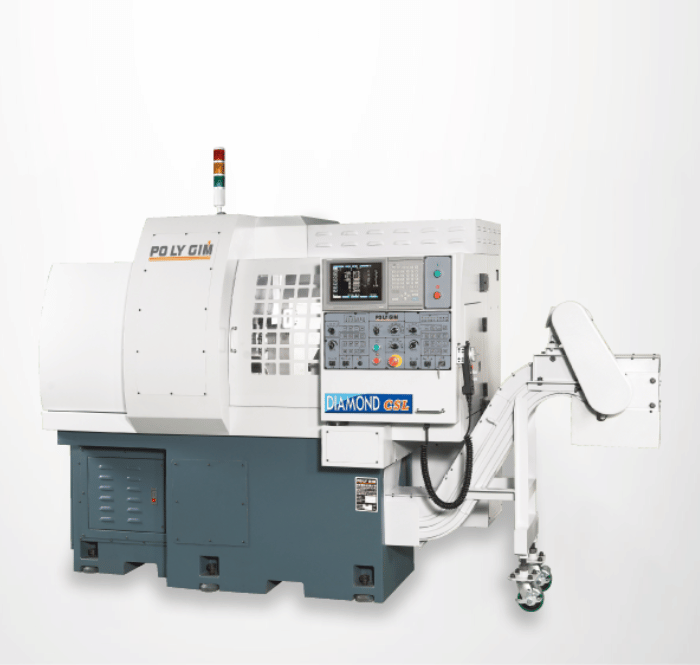

Po Ly Gim introduces the smallest Swiss type CNC lathe: the Diamond CSL 12-2Y. With a 12mm bar capacity and up to 10 working axes, the Diamond CSL 12-2Y is not only compact in size, it also has superb capabilities. Among its unique features are the two Y-axes and six fully programmable (360°) tools that work on both the main and sub-spindle, making the Diamond CSL 12-2Y suitable for producing small electronic parts. It is also capable of doing milling and turning.

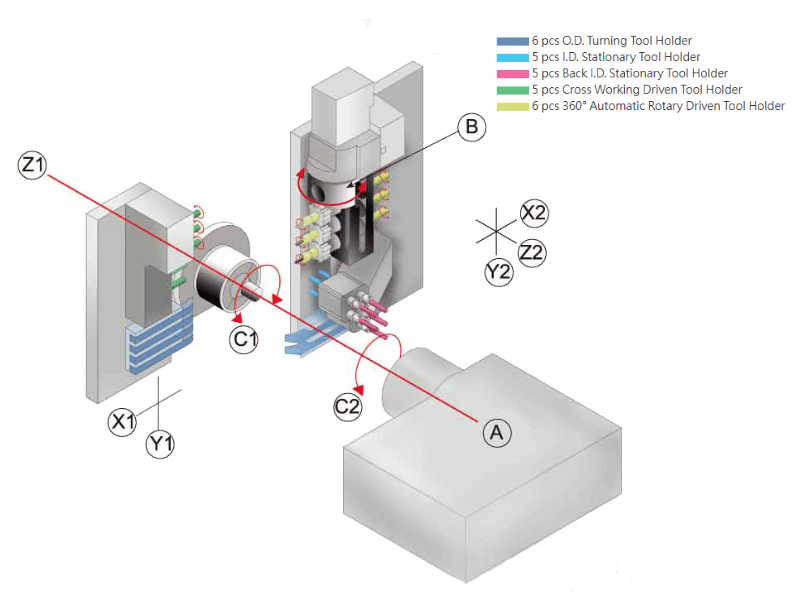

Tool Post

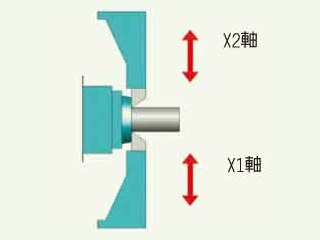

Simultaneous rough / finishing processing

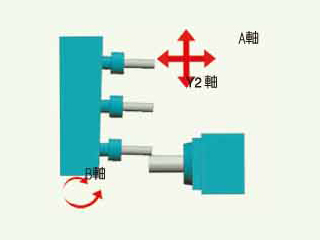

Simultaneous main spindle bevel drilling / milling

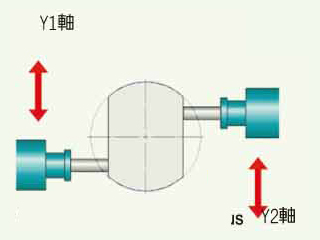

Opposite end face processing

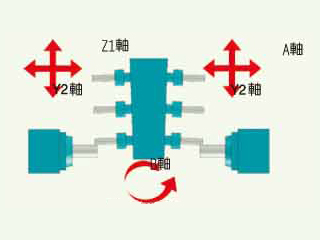

Simultaneous opposite milling processing

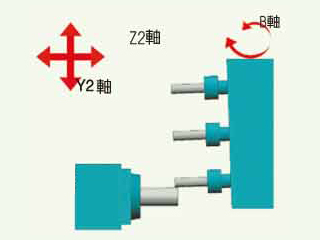

Simultaneous sub-spindle bevel drlling / milling

標準配件
    Main spindle
    Sub-spindle
    Working light
    Coolant system
    Part off detective sensor
    Fixed bushing
    Part catcher
    6 pcs O.D. turning tool holder
    5 pcs front I.D. stationary tool holder
    5 pcs back I.D. stationary tool holder
選擇配件
    5 pcs cross working driven tool holder
    6 pcs 360° automatic rotary driven tool holder
    CS axis
    Live bushing
    Rough material bushing (Max. machining = Bar dimmeter x3)
    Chip conveyer
    Chip bucket
產品規格
ItemsDiamond CSL 12-2YDiamond CSL 12-2YDiamond CSL 16-2YDiamond CSL 16-2Y
SystemY1 (System 1)Y2 (System 2)Y1 (System 1)Y2 (System 2)
Working Range
Max. Machining Dia.Ø12.7 mm
Ø16.5 mm
Max. Machining Length Per Chucking143 mm
143 mm
Max. Drilling CapacityØ7 mm
Ø10 mm
Max. Tapping CapacityM6
M8
Tooling System
O.D. Turning Tool4242
O.D. Turning Tool Dimension□10  x10 x 100□10  x10 x 100□10 x 10 x 100□10 x 10 x 100
I.D. Tool
5
5
I.D. Tool Dimension
7 mm (ER11)
10 mm (ER16)
Cross Tool (Power - Driven Tool)5
5
Cross Tool Dimension7 mm (ER11)
10 mm (ER16)
Cross Tool Speed200~6000 rpm
200~6000 r.p.m.
360° Automatic Rotary Driven Tool
6
6
360° Automatic Rotary Driven Tool  Dimension
10 mm (ER16) x3
7 mm (ER11) x3
10 mm (ER16) x3
7 mm (ER11 )x3
360° Automatic Rotary Driven Tool Speed
200~6000 r.p.m.
200~6000 r.p.m.
Spindle
Spindle Hole Dia.Ø13 mm
Ø17 mm
Spindle Speed200~10,000 r.p.m.
200~10,000 r.p.m.
Sub-spindle
Sub-spindle Hole Dia.
Ø13 mm
Ø17 mm
Sub-spindle Speed
200~10,000 r.p.m.
200~10,000 r.p.m.
Sub-Spindle Max. Drilling Capacity.
Ø7 mm
Ø10 mm
Sub-Spindle Max. Tapping Capacity.
M6
M8
Rapid Speed
A axis
30m/min
30 m/min
X1, Z1 Axes30m/min
30 m/min
Y1 Axis30 m/min
30 m/min
X2, Y2, Z2 Axes
30m/min
30 m/min
Motors
Main Spindle2.2 kW
2.2 kW
Sub-Spindle
2.2 kW
2.2 kW
Y1, Y2 axes1.0 kW1.0 kW1.0 kW1.0 kW
A, X1, Z1, X2, Z2 axes1.0 kW1.0 kW1.0 kW1.0 kW
B Axis
1.0 kW
1.0 kW
Rotary Tools / B Axis Rotary Tools1.0 kW1.0 kW1.0 kW1.0 kW
Coolant Pump1 HP
1 HP
Lubrication25 W
25 W
Machine Dimensions
Center Height1050 mm
1050 mm
Weight2580 kg
2680 kg
Dimension2500 x 1200 x 1800 mm
2500 x 1200 x 1800 mm
Air
Air Pressure5kg/cm
5 kg /cm
Air Supply10L/min
10 L / min
* 我們保留更改設計的權利，恕不另行通知。
